NC Carbide Chamfering Machine

NC Carbide Chamfering Machine

Model ID：PAC-12

▶ Machine Features

●	Specialized in machining workpieces in tungsten carbide.

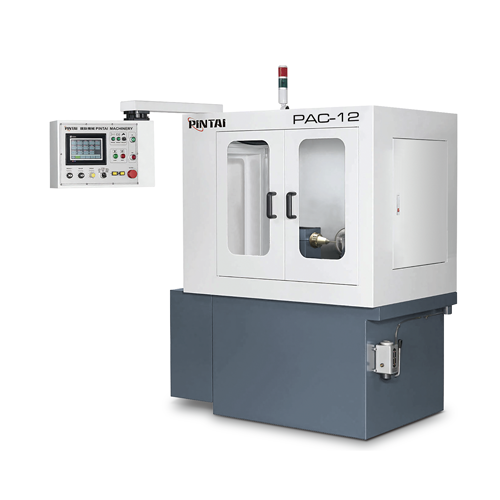

NC Carbide Chamfering Machine PAC-12

Model/ Spec.	Unit	PAC-12
Clamping range of workpiece diameters	mm	∅3-∅25
Range of chamfering	mm	∅3-∅12
Chamfering face	mm	∅1-∅25
Workpiece diameters	mm	∅3-∅12
Loading length	mm	L30-L125
Max travel of X axis	mm	150
Max travel of Y axis	mm	200
Min feed unit X axis	--	Manual
Min feed unit Y axis	mm	0.001
Work head spindle speed	rpm	0-1200
Grinding wheel spindle speed	rpm	0-6000
Grinding wheel motor	HP	2
Work head spindle motor	W	400
Y axis motor	KW	900
Machine measurement
Machine dimension (WDH)	mm	110011001600
Machine weight (approx.)	kg	650

Standard Accessories	Optional Accessories
Flange ∅31.75mm	SCHAUBLIN Collet ∅3、∅8、∅10、∅12、∅16、∅20
SCHAUBLIN Collet ∅4、∅6 (One for each)	Roller of Hopper ∅8/∅10、∅12/∅16、∅3/∅20
Tool Box and Kit
Working Light
Coolant Device (Standard)
Full Cover
Auto Loading System
Roller of Hopper ∅4、∅6
