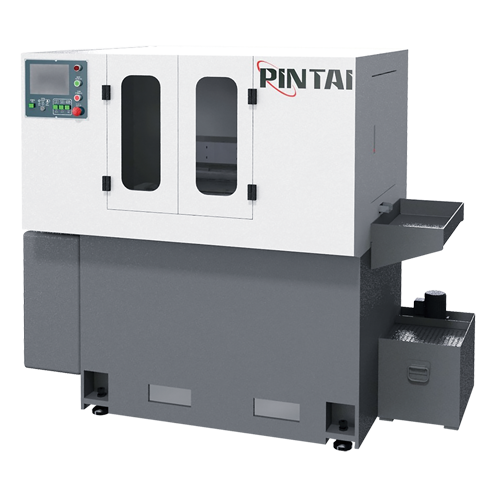

NC Automatic Carbide Tool Cutting Machine

NC Automatic Carbide Tool Cutting Machine

Model ID：PTC-16

▶ Machine Features.

●	Auto loading system.
●	Human-machine interfacing touch screen for easy operation.
●	Feeding system by servo motor.
●	Accuracy of cutting length achieves ±0.05mm.

▶ NC Automatic Carbide Tool Cutting Machine PTC-16

Model/ Spec.	Unit	PTC-16
Clamping range of workpiece diamters	mm	∅1-∅12
Clamping range of workpiece length	mm	20-330
Grindign wheel	mm	205*31.75
Grinding wheel spindle speed	rpm	3600
Grindign wheel head motor	HP	2
Cycle time	sec	∅12mm/ 20
Machine Measurement
Machine dimension (WDL)	mm	190411541659
Machine weight (approx.)	kg	700
