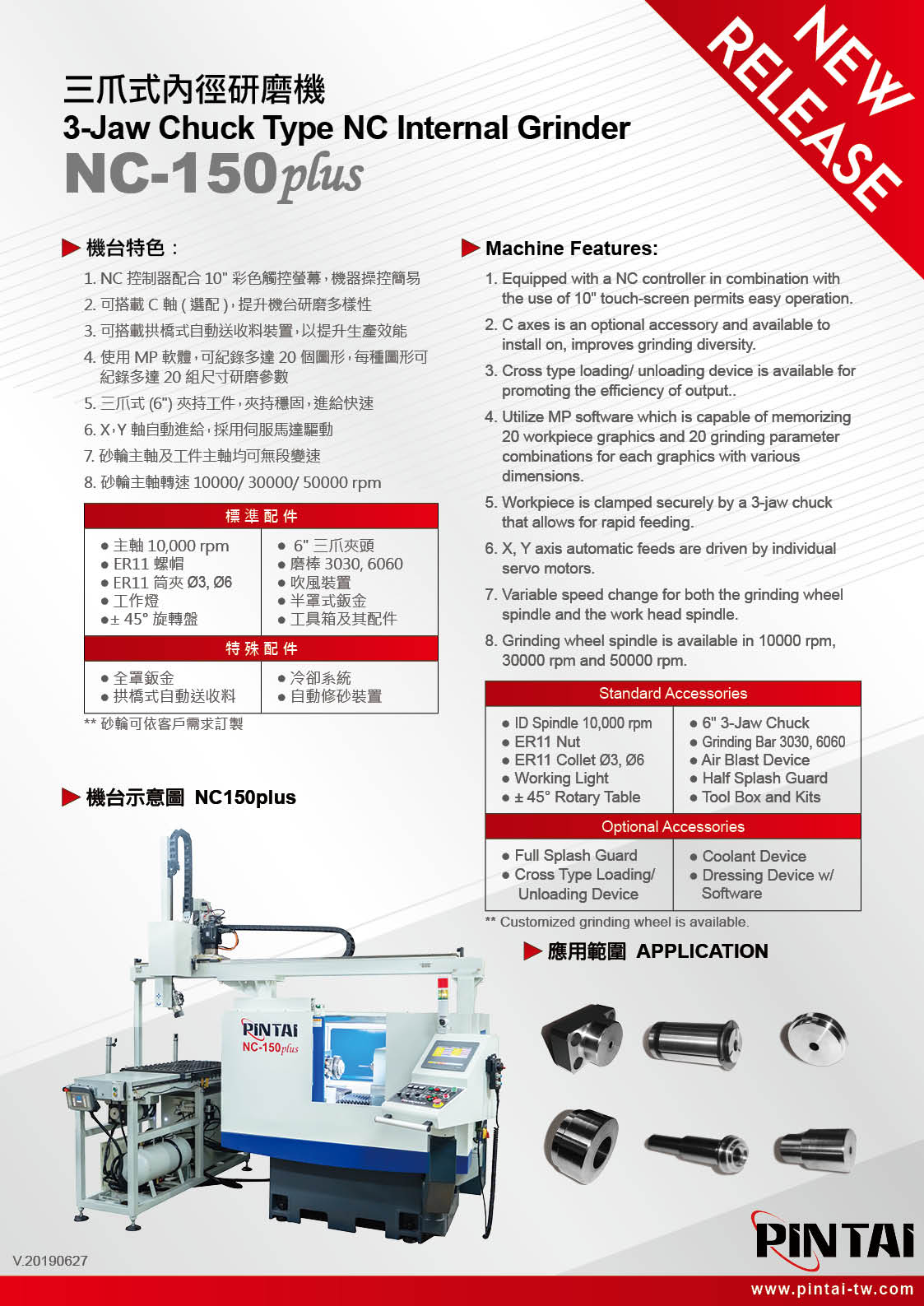

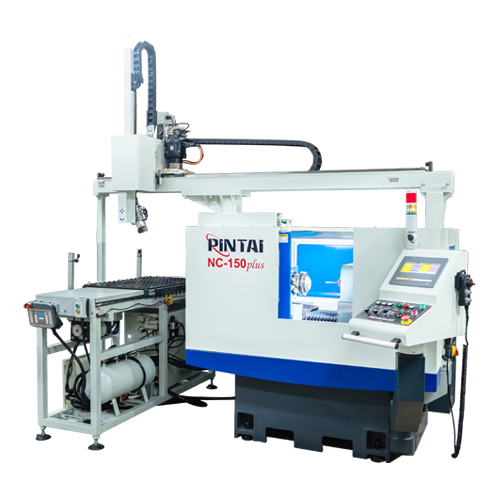

3-Jaw Chuck Type NC Internal Grinder (6
Model ID：NC-150MP▶ Machine Features
| ● | Equipped with a NC controller in combination with the use of 10" touch-screen permits easy operation. |
| ● | C axes is available to install on, improves grinding diversity. |

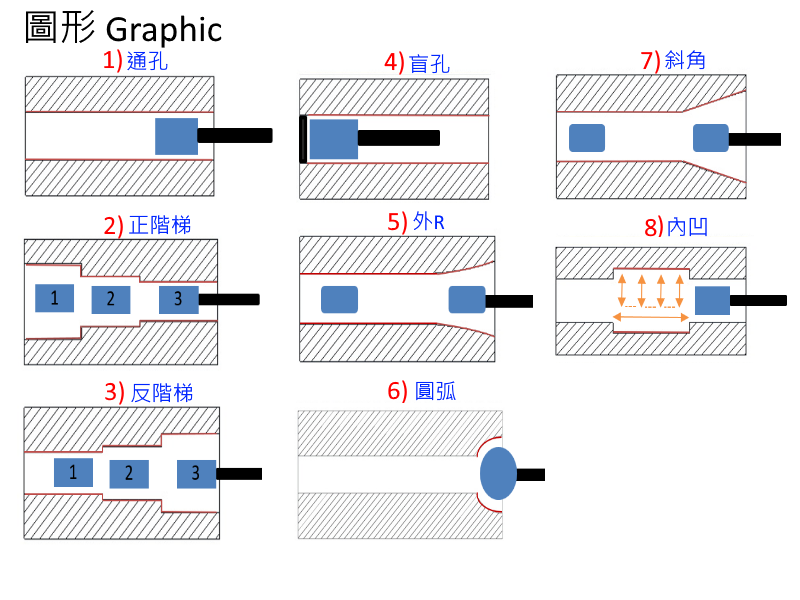

| ● | Utilize MP software which is capable of memorizing 20 workpiece graphics and 20 grinding parameter combinations for each graphics with various dimensions. |
| ● | Workpiece is clamped securely by a 3-jaw chuck that allows rapid feeding. |
| ● | Rugged machine structure assures maximum stability during grinding. |
| ● | X，Y axis automatic feeds are driven by individual servo motors. |
| ● | Variable speed change for both the wheel spindle and the workhead spindle. |
| ● | High wheel speed significantly increases machining efficiency and improves surface finish. |
| ● | Double "V" slideways are hardened. Slides surfaces are precisely ground, coated with Turcite-B and hand scraping. |
| ● | Three-Color warning lamp indicates the current operation condition. |
| ● | Three-Jaw Chuck 6" wheel spindle 10000/ 30000/ 50000 rpm. |
