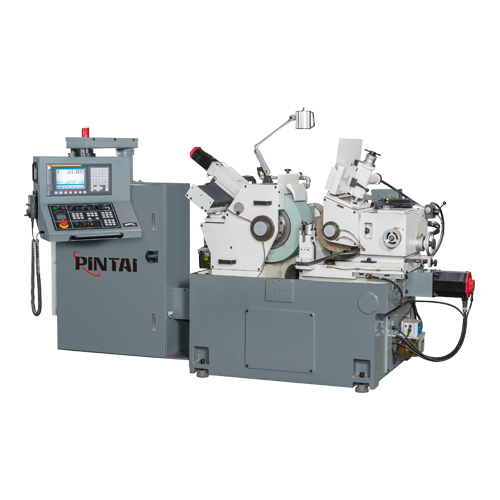

Centerless Grinding Machine (CNC Series)

Model ID：P-12CNC/ P-18CNC/ P-20CNC

▶ Machine Features

●	Rugged machine structure assures maximum stability during grinding.
●	Achieving high accuracy requirements for all kinds of workpiece.
●	Fanuc controller.
●	Various axes to meet customer's application.
●	Customized automation to provide grinding efficiency.

▶ Centerless Grinding Machine P-12CNC/ P-18CNC/ P-20CNC

Model / Spec.	Unit	P-12CNC	P-18CNC	P-20CNC
Grinding range (Dia.)	mm	∅1-∅30	∅2-∅50	∅2-∅50
Grinding wheel size (Dia.WH)	mm	305150120	455205228.6	510205304.8
Regulating wheel size (Dia.WH)	mm	20515090	255205111.2	305205127
Grinding wheel speed	rpm	2000	1350	1350
Regulating wheel speed (servo motor)	rpm	0-300	0-300	0-300
Grinding wheel motor	HP	10	15	20
Regulating wheel motor	--	1 HP	2.9 KW	3 HP
Hydraulic pump	HP	1	1	1
Coolant pump	HP	1/8	1/4	1/4
Upper slide feed graduation	mm	0.05	0.05	0.05
Upper slide min. feed graduation	mm	0.001	0.001	0.001
Lower slide feed graduation	mm	0.05	0.05	0.05
Lower slide min. feed graduation	mm	0.001	0.001	0.001
Dressing device graduation	mm	0.01	0.01	0.01
Regulating wheel tile angle	deg.	±5°	±5°	±5°
Regulating wheel swivel angle	deg.	±5°	±5°	±5°
Machine measurement
Machine dimension (WDH)	mm	190015501420	245020501600	265021501600
Machine weight (approx.)	kg	1550	3200	4000

▶ Accessories

Standard Accessories	Optional Accessories
Regulating Wheel and Flange *1 set	Wheel Balancing Stand & Arbor
Grinding Wheel and Flange *1 set	Paper Filter
Flange Extractor * 1pce	Magnetic Coolant Separator
Diamond Tool *1 pce	Hydrocyclone Coolant Separator
Hydraulic Tank *1 set	Oil Mist Separator
Coolant System *1 set	Supporter for Long Bar Grinding
Oil Cooling Fan *1 set	Automatic Loading Attachment for Infeed Grinding
Thrufeed Work Rest and Carbide Blade *1 set	Automatic Unloading Attachment for Infeed Grinding
Working Light *1 set	Automatic Loading Attachment for Thrufeed Grinding (Hopper Type)
Tool Box and Kit *1 set	Automatic Loading Attachment for Thrufeed Grinding (Vibratory Feeder)
	Automatic Loading Attachment for Thrufeed Grinding (Magazine Type)
	Unloading Attachment for Thrufeed Grinding
